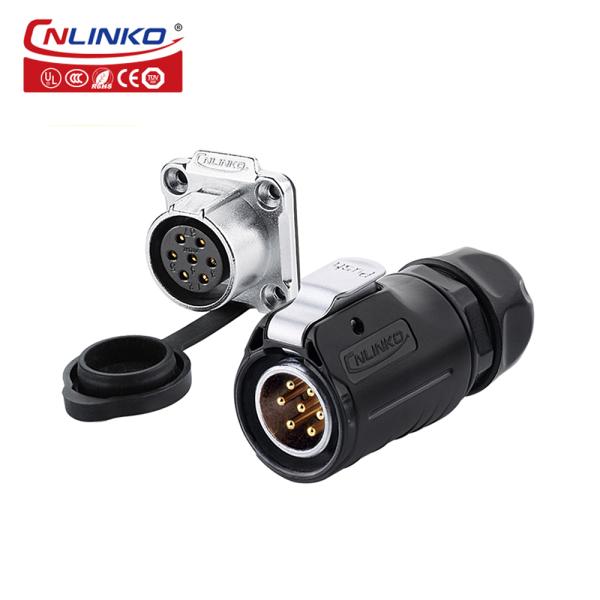

CNLINKO M20 7 Pin IP68 Waterproof DC Plug Plastic Shell Connector 7 Pin Male Connector

Product Categories

Shenzhen Connectorworld Technologies Co.Ltd.

Contact Now

Name: CNLINKO M20 7 Pin IP68 Waterproof DC Plug Plastic Shell Connector 7 Pin Male Connector
Brand: CNLINKO
Price: 7.32 USD

Place of Origin : Guangdong, China

Brand Name : CNLINKO

Model Number : LP-20-C07PE-01-001

Certification : CUL,CE,ROHS,CCC,ISO9001

MOQ : 2

Price : $7.32-8.32

Shape : ROUND

IP level : ip68

Type : XLR

Application : Automotive

Gender : male and female

Produce type : splice connectors

Current rating(A) : 12A

Protection level : IP67/IP65

Shell & Insulated Parts : High Performance Engineer Plastic

Hardware Matel : Zinc Alloy (pearl hard chromium)

Connecting mode : Quickly insert and pull out

Assembly : Solder

Operating voltage : 500V

Contact pin : Copper alloy(gold-plated)

Contact Now

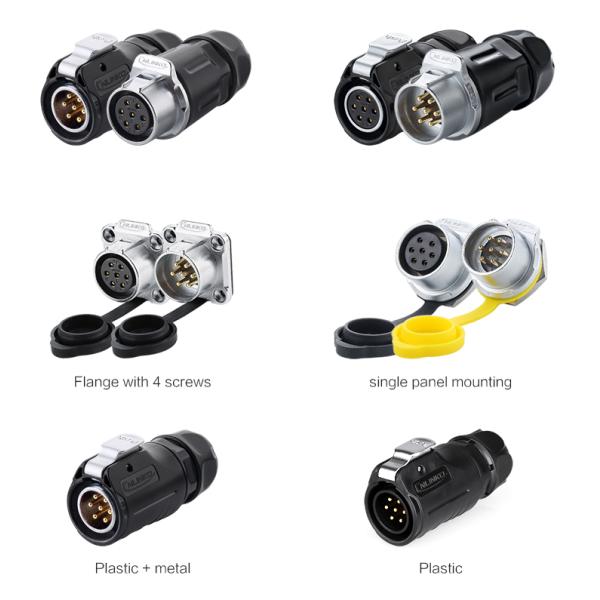

CNLINKO M20 7 pin IP67 waterproof DC plug plastic shell connector 7 pin male connector

Product Description

Specifications

Specifications
Connecting mode	Latching Lock connect
Protection level	IP65/IP67
Cable specification	1.0mm² ~ 1.5mm² /18~16AWG
Diameter range	Φ8mm ~Φ12mm
Contact diameter×Qty	Φ1.8×7
Current rating(A)	12A
Temperature rise	12A contact temperature below 30℃ 15A contact temperature below 40℃ 20A contact temperature below 50℃
Operating voltage(AC.V.rms)	500V
Withstanding voltage(AC.V)1min	2500V
Contact resistance	<2.5mΩ
Insulation resistance	>500MΩ
Durability	≥500 mating&unmating cycles
Temperature rating	-40°C~80°C
Method of connecting cable	Soldering
Prevent the combustion level	UL94-V0
Material
Insulated parts	High performance engineering plastics
Hardware metal	Zinc alloy(pearl hard chromium)
Contact pin	Copper alloy(gold-plated 4U)
Spring	Stainless steel
Sealing	Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery
