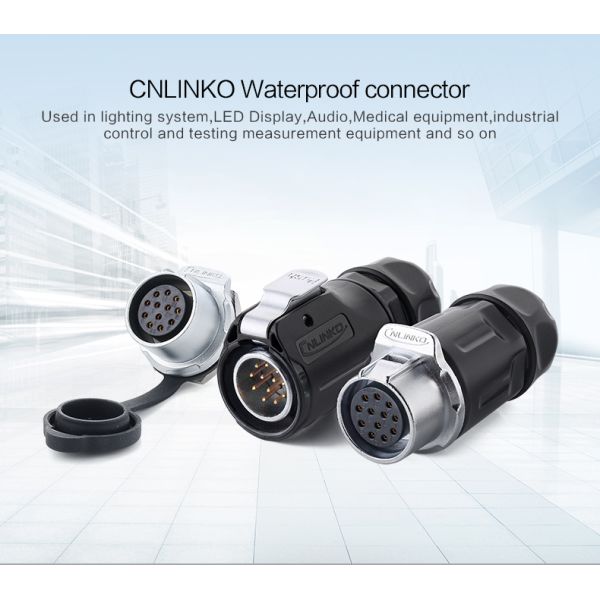

IP68 Waterproof Fast Connectors LP 20 Indoor Led Module 2 Pin to 12 Pin Male and Female Electrical Connector

Name: IP68 Waterproof Fast Connectors LP 20 Indoor Led Module 2 Pin to 12 Pin Male and Female Electrical Connector
Brand: CNLINKO
Price: 3.95 USD

China IP68 Waterproof Fast Connectors LP 20 Indoor Led Module 2 Pin to 12 Pin Male and Female Electrical Connector wholesale

Place of Origin : Guangdong, China

Brand Name : CNLINKO

Model Number : LP-20-C12PE-01-001

Certification : CUL,UL,CE,ROHS,CCC,ISO9001

MOQ : 2

Price : $3.95-4.61

Type : XLR

Application : Signal

Gender : male+female

Produce type : splice connectors

Current rating(A) : 5A

Protection level : IP65/IP67

Shell & Insulated Parts : High Performance Engineer Plastic

Hardware Matel : Zinc Alloy (pearl hard chromium)

Connecting mode : Quickly insert and pull out

Assembly : Solder

Operating voltage : 200V

Contact pin : Copper alloy(gold-plated)

Contact Now

IP67 Waterproof Fast Connectors LP 20 Indoor Led Module 2 Pin to 12 Pin Male and Female Electrical Connector

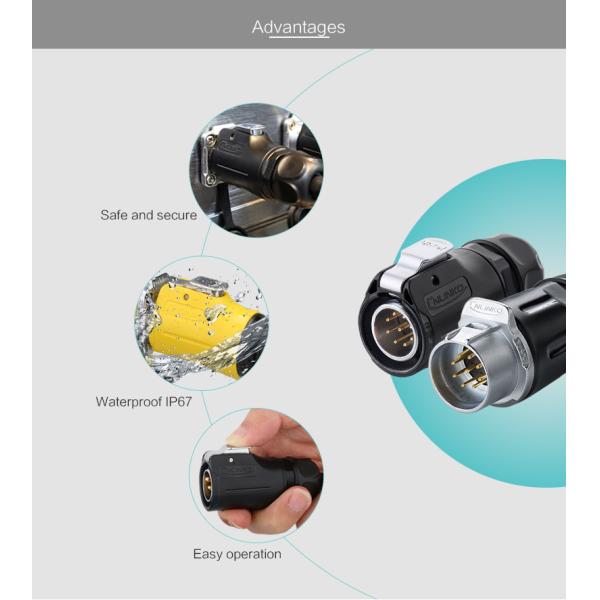

Features:

With multi-core design to fit with different industrial needs
Alloy metal socket is with fully electromagnetic and radio frequency interference protection
With gold-palted contact,stronger corrosion resistance and conductivity
PBT materials shell,stable electrical performance,pressure-resisting,high temperature resistance,anti-explosion,anti-corrosive
2/3/4/5/7pin for power connector,9/12 for signal connector,power and signal can be compatible match
IP67/IP68 when mated
Current rating:5A/12A/20A rms
Please indicate if you need the protection level more high

Product Description

Specifications

Specifications
Connecting mode	Latching Lock connect
Protection level	IP65/IP67
Cable specification	0.15mm² ~ 0.2mm² /26~24AWG
Diameter range	Φ5.5mm ~Φ7mm
Contact diameter×Qty	Φ1.0×12
Current rating(A)	5A
Temperature rise	/
Operating voltage(AC.V.rms)	400V
Withstanding voltage(AC.V)1min	1500V
Contact resistance	<5mΩ
Insulation resistance	>500MΩ
Durability	≥500 mating&unmating cycles
Temperature rating	-40°C~80°C
Method of connecting cable	Soldering
Prevent the combustion level	UL94-V0
Material
Insulated parts	High performance engineering plastics
Hardware metal	Zinc alloy(pearl hard chromium)
Contact pin	Copper alloy(gold-plated 4U)
Spring	Stainless steel
Sealing	Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery

Certifications
